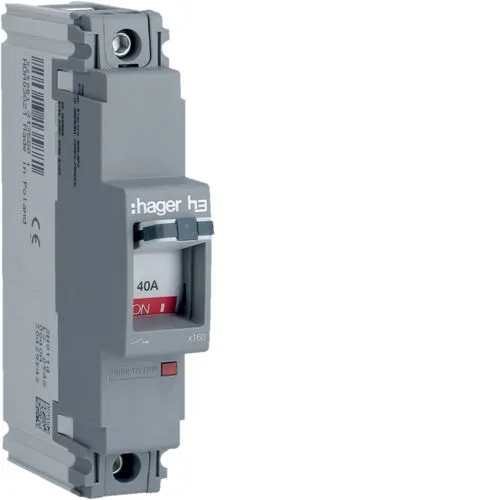

Hager HDA038Z 40A 18kA Single Pole Fixed Thermal TM MCCB h3 x160
Product DescriptionMoulded Case Circuit Breaker h3 x160 TM FIX 1P1D 40A 18kA CTC
Features- Thermal magnetic trip unit, two versions: Z/E version: fixed thermal and fixed magnetic. U version: adjustable thermal and fixed magnetic.
- Access to mechanical test button on cove
- Lockable cover protects MCCB settings.
- Integrated padlocking handle: Ø 4mm
- Connection capacity: 95mm2 rigid cables, 70mm2 flexible cables
- Cage terminals
- Conforms to BS EN 60947-2
- Fixed thermal: 1x In
- Adjustable thermal: 0.63 - 0.8 - 1 x In
